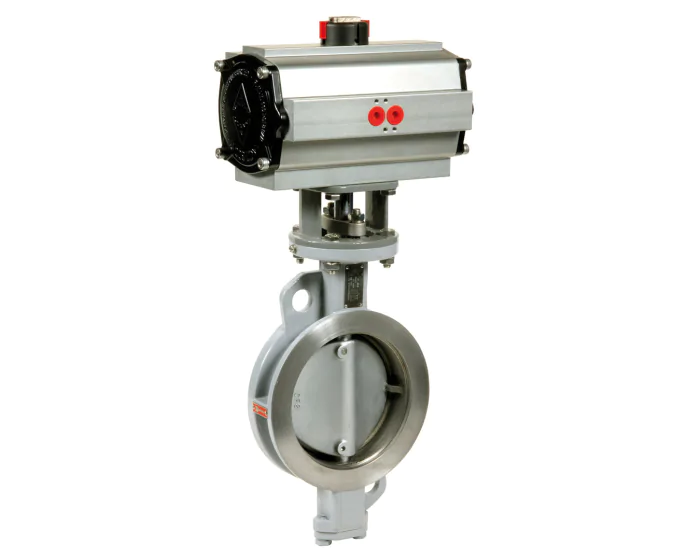

The 1113 series carbon steel butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc, up to DN300. It is a wafer type, double offset.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 43.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| Connections | Flanged PN16/25 RF |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category I |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Double acting | 260950015101 | S1001882 |
€579.36
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Spring return | 260950016102 | S1001883 |
€632.40
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Double acting | 260951015101 | S1001884 |
€623.76
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Spring return | 260951016102 | S1001885 |
€679.97
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Double acting | 260952015102 | S1001886 |
€734.40
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Spring return | 260952016103 | S1001887 |
€795.60
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Double acting | 260953015102 | S1001888 |
€745.74
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Spring return | 260953016104 | S1001889 |
€845.46
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Double acting | 260954015104 | S1001890 |
€1,071.00
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Spring return | 260954016105 | S1001891 |
€1,190.34
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Double acting | 260955015105 | S1001892 |
€1,247.50
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Spring return | 260955016106 | S1001893 |
€1,392.83
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Double acting | 260956015105 | S1001894 |
€1,958.40
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Spring return | 260956016106 | S1001895 |
€2,101.20
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset Double acting DN250 - 10'' | 260957015106 | S1001896 |
€2,848.26
(excl. btw)
|
add to cart |
| Flanged PN16/25 RF Carbon steel A216 WCB (1.0619) Double offset Double acting DN300 - 12'' | 260958015106 | S1001897 |
€3,539.40
(excl. btw)
|
add to cart |
